Graphite & Carbon Materials for Solar Cell Production
Silicon-based photovoltaics depends on the controlled growth of mono- or multicrystalline silicon ingots — processes that take place at temperatures around 1,500 °C (2,732 °F) in inert atmospheres. Every component inside the crystal growth furnace must withstand sustained high heat, resist contamination, and maintain dimensional stability over repeated thermal cycles. Carbon-based materials meet these requirements where metals and ceramics cannot.
Graphite, carbon felt, and carbon-carbon (C-C) composites are integral to the solar value chain, from polysilicon deposition through Czochralski (CZ) pulling and directional solidification (DS) to downstream wafer processing. These materials form the hot zone architecture — heaters, crucible supports, insulation systems, and heat shields — that determines ingot quality, energy efficiency, and furnace throughput.
Max Graphite supplies standard and custom-machined components across all three material families, supporting solar cell manufacturers who need consistent purity, tight tolerances, and reliable supply for high-volume production environments.
Applications
- Resistance heaters (side, top, and bottom) — machined from high-purity isostatic graphite to deliver uniform thermal profiles in CZ and DS furnaces
- Crucible susceptors and support plates — graphite components that cradle quartz crucibles during crystal pulling, maintaining alignment under thermal load
- Heat shields and afterheaters — C-C composite or graphite assemblies that control thermal gradients above and around the growing ingot
- Outer tubes, rings, and reflectors — isostatic graphite hot zone furniture that directs and contains radiant heat within the growth chamber
- Rigid felt insulation panels — carbon rigid felt used as primary furnace insulation to reduce heat loss and lower energy consumption per run
- Soft felt insulation wraps — flexible carbon felt layered around hot zone structures or used in combination with graphite foil for enhanced thermal performance
- Graphite foil liners and barriers — high-purity flexible graphite foil used as heat shields, supplementary insulation layers, or gas barriers within the furnace assembly
- DS furnace cover plates — C-C composite top covers used in directional solidification systems to manage heat extraction during ingot cooling
- Polysilicon deposition electrodes (polychucks) — high-purity graphite electrodes used in Siemens-type reactors for CVD deposition of polysilicon feedstock

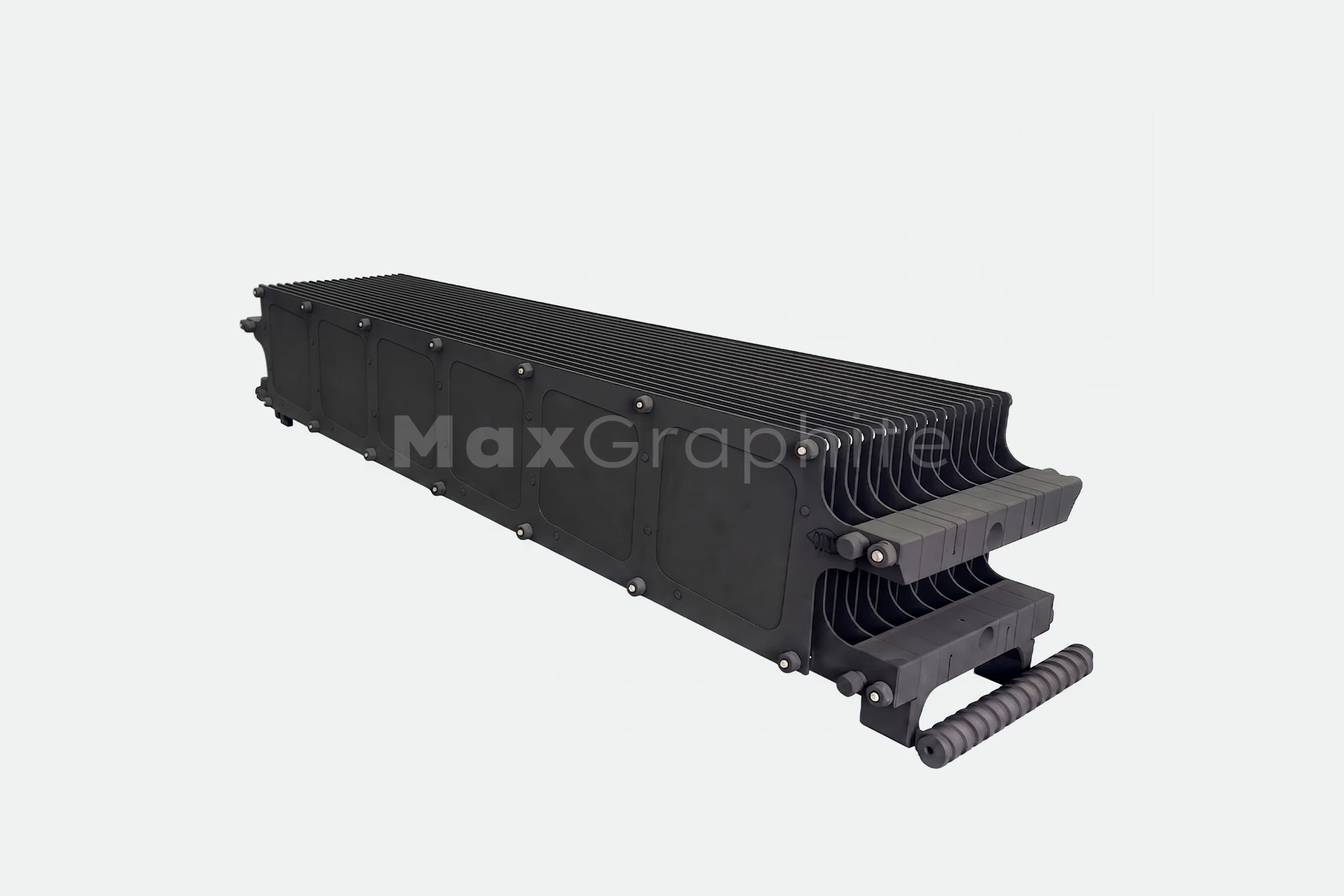

- PECVD wafer carriers — isostatic graphite or C-C composite carriers used in plasma-enhanced chemical vapour deposition for anti-reflective coating of finished wafers
Materials

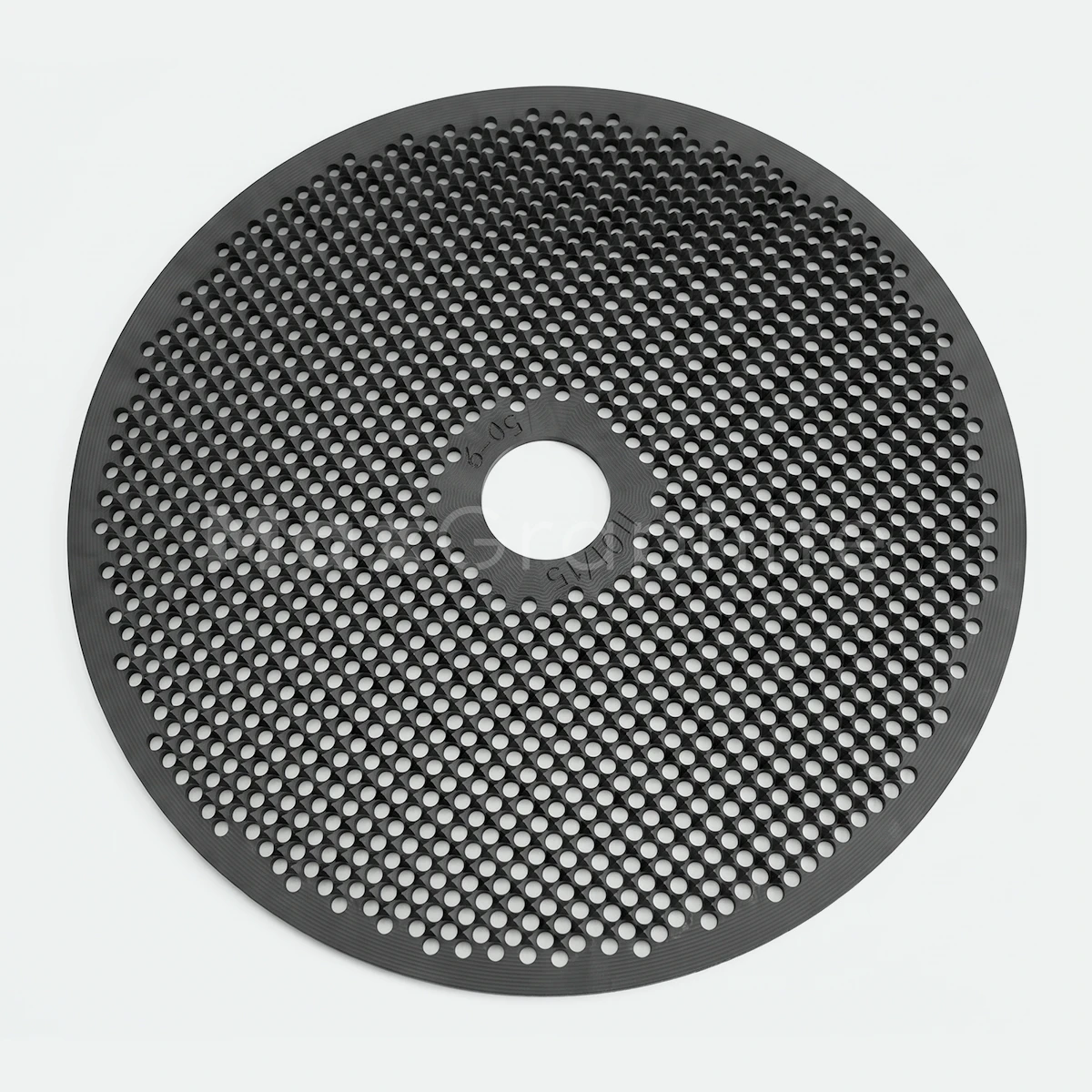

Isostatic Graphite
Graphite Soft Felt
Graphite Rigid Felt
Carbon Carbon Composite
Graphite Foil
Why Max Graphite?
Solar furnace operators manage complex bills of material — often requiring graphite, felt, foil, and composite components for a single hot zone assembly. Max Graphite serves as a single-source supplier across all four material families, simplifying procurement and reducing lead times. We machine standard and custom parts to drawing, with quality controls aligned to the purity and dimensional standards the photovoltaic industry demands. Our technical team works with furnace engineers to match grades and tolerances to specific furnace designs, whether CZ, DS, or downstream processing equipment. For manufacturers seeking premium materials at competitive value, Max Graphite provides a responsive alternative to legacy suppliers.
Ready to source graphite, felt, or C-C composite components for your solar furnace hot zone? Request a quote or send us your drawing — our team will review your requirements and respond with a detailed proposal.
